Product Details
Description

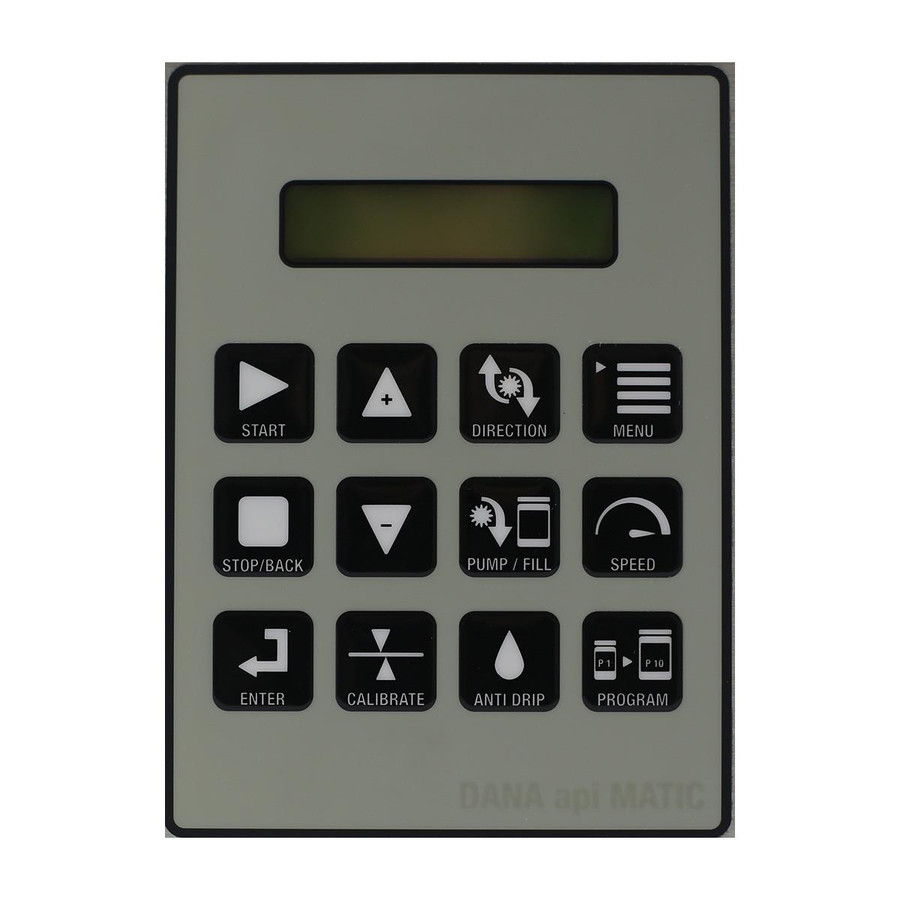

Discover the Swienty Filling Machine, a cutting-edge filling apparatus that utilizes a gear pump for optimal performance. Driven by a low voltage DC motor and supported by a helical gear box, this machine operates with precision. Its computer-controlled electronics ensure not only effective motor management but also a flawless anti-drip function. With 20 filling programs at your disposal, you can easily customize settings for weight, calibration factors, and other essential parameters. The machine is designed for accuracy and is user-friendly, making it suitable for a variety of substances. It features a reversible pumping action and adjustable speed options. All components that come into contact with the product are crafted from food-grade plastic or stainless steel, allowing for straightforward disassembly and cleaning. When set on its legs, the machine can accommodate jars up to 4.13 inches in height.
Specifications:
- Machine Type: Computer controlled gear pump
- Filling capacity: 10 g - infinity g (honey)
- Weight unit: ml/g/oz
- Precision: +/- 2g
- Pump capacity: approx. 270 kg/h
- Programs: 20+ options to program
- Power supply: 90-264VAC 50/60Hz
- Power consumption: 230W
- Sound level: The sound pressure level of the pump is less than 70dB(A)
- Connections: 1-1/2" BS hose connectionon both sides of the pump
Included Fittings (call for purchase):
- Foot pedal
- Counterflow valve
- Dosing syringe 0-60 ml
- Nut for BS fitting 1-1/2"
- Complete cut-off-cross
- Legs
- 1-1/2"/38mm hose
- 1-1/2" bent BS fitting
- 1-1/2" Hoseclamp
Specification
- 12.20 x 11.81 x 12.20 inches
- 39.68 LBS
